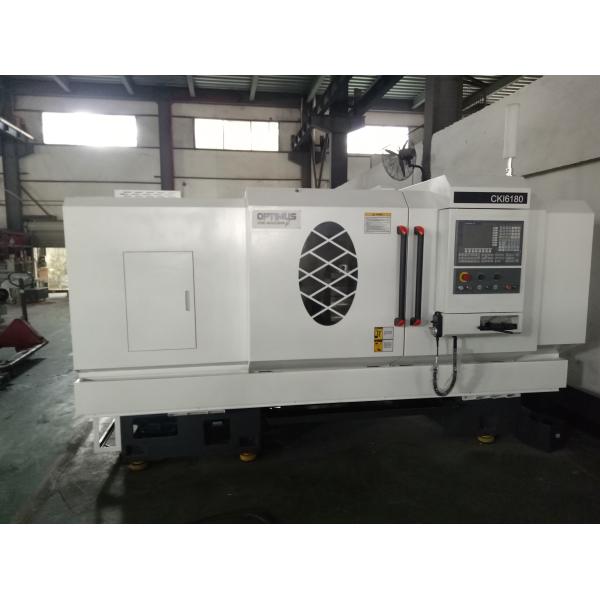

Flat Bed CNC Lathe Machine CKI-6180
1)Machine body guide way are quenched for better resistance of abrasion, and
increased stability and accuracy.
2)6136, 6140 machine employ intergrated body structure, and extra wide guide
way with better vibration resistance.
3)Spindle, saddle adopt special structure and technology, which increase precision,
stability and accuracy.
4)Models above 6150 adopt gear box transmission design, and are equipped with
inverter spindle motor which can enable strong cutting force with 3-level gear speed,
and change rotation speed by controller system at each speed level.
5)Optional control system: GSK Control system, KND control system and Fanuc mate
control system.
| Model | CKI6180 |
| Max swing diameter over table | 800mm |
| Max swing diameter over carriage | 480mm |
| Max length of workpiece | 1000/1500/2000mm |
| Width of guide way | 550mm |
| Three jaw chuck diameter | φ320 |
| Spindle rotation speed | 40-125rpm, 110-350rpm, 290-950rpm |
| Variable structure of spindle box | 3 grades gear speed |
| Spindle head and spindle taper | C-11/1:20 |
| Spindle motor | 11kw |
| Diameter of spindle hose | 105mm |
| X/Z axis rapid feed | 6/8 m/min |
| Diameter of sleeve | 95mm |
| Travel of sleeve | 250mm |
| Taper of tailstock sleeve | MT5 |
| Positioning accuracy | 0.01mm |
| Dimension | 3500*1500*1700 mm |
| Net weight | 3000/3350/3650kg |
| Top distance | 1000/1500/2000mm |
1) GSK 98OTDI control system 2) KW spindle motor
3) 4 position electronic turret 4) Full cover shield
5) Lubrication system 6) Work piece coolant system
7) Alarming light 8) Working light
9) Liner way shield 10) Tools and toolbox
11) Technical documents 18) φ320 3 jaw manual chuck
1) Six position electronic turret
2) Hydraulic tailstock
3) Fanuc controller
|
|
